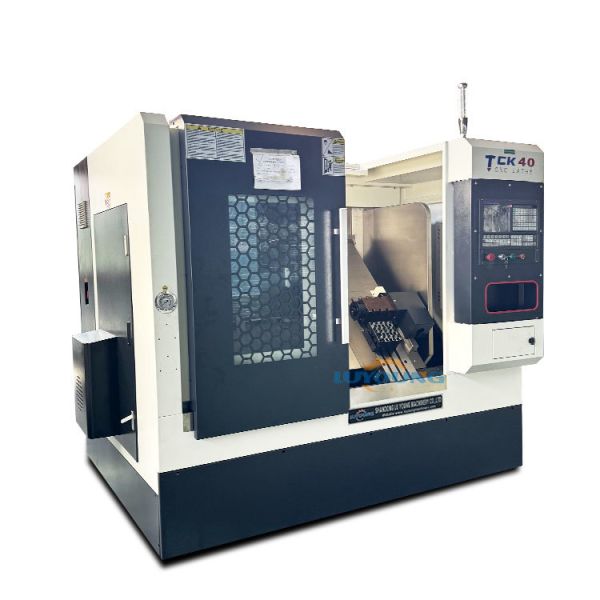

TCK40 Small Slant Bed CNC Lathe Machine for Multi-Purpose Metal Processing

Brand Name : Lu Young

Model Number : TCK40

Certification : CE

Place of Origin : Shandong, China

MOQ : 1/SET

Price : $15,000.00/sets >=1 sets

Payment Terms : T/T

Supply Ability : 30/SET

Delivery Time : 20 working days

Packaging Details : non-fumigation wooden box

Spindle Motor : 7.5kw

Bed Type : Whole Body Slant Type 45°

Spindle C Motor : 4

Z Axis Travel : 400

Coolant System : Included

Positioning Accuracy : ±0.016mm

Key Words : Slant Bed CNC Lathe Machine

Max Turning Diameter : 400mm

Spindle Speed Ranges : 3500rpm

Tailstock Type : Hydraulic

Spindle Tape : A2-6

Voltage : 380v 3 phase

Machine Weight : 3500kg

Contact Now

Specification
Item
Model
TCK40
Working Range
Max swing over bed dia.
Φ400
Max swing over cross slide dia.
Φ120
Max cutting length(mm)
400
Fast forward
X-axis rapid traverse(m/min)
24m(3210)
Z-axis rapid traverse(m/min)
24m(3210)
X,Y axis travel range
X axis(mm)
800
Z axis(mm)
420
Feeding
X axis motor torque(N.M)
5
X/Z axis linear guide way (mm)
35/35
Z axis motor torque(N.M)
7.5
X and Z axis connection mode
direct connection
Lathe body
Gradient
45°
Accuracy
PositionaI accuracy
±0.007
Repositioning Accuracy
±0.003
type
Gang type tool holder
Cutting tool shape size
20×20
Sleeve spindle unit
Max turning speed(rpm)
3000
Max. spindle hole
Φ48
Spindle nose
A2-5
Spindle taper
1:20
Main motor power(kW)
5.5
Net Weight
1500
Dimensions(mm)
2100*1450*1850
The TCK40 popular small vertical lathe with combined tool holder and CNC inclined bed lathe machine tool product is a semi-enclosed inclined bed lathe and turning-milling machine, featuring X, Y, Z and C-axis servo control functions. Its structure and external dimensions are compact and reasonable. The spindle (C-axis) is driven by a servo motor. It can complete the external circle, end face and thread turning of various materials (such as shafts and discs), as well as various radial and axial plane milling and drilling processing. It is suitable for efficient processing of small parts.
TCK40 Small Slant Bed CNC Lathe Machine for Multi-Purpose Metal Processing
TCK40 Small Slant Bed CNC Lathe Machine for Multi-Purpose Metal Processing
TCK40 Small Slant Bed CNC Lathe Machine for Multi-Purpose Metal Processing
